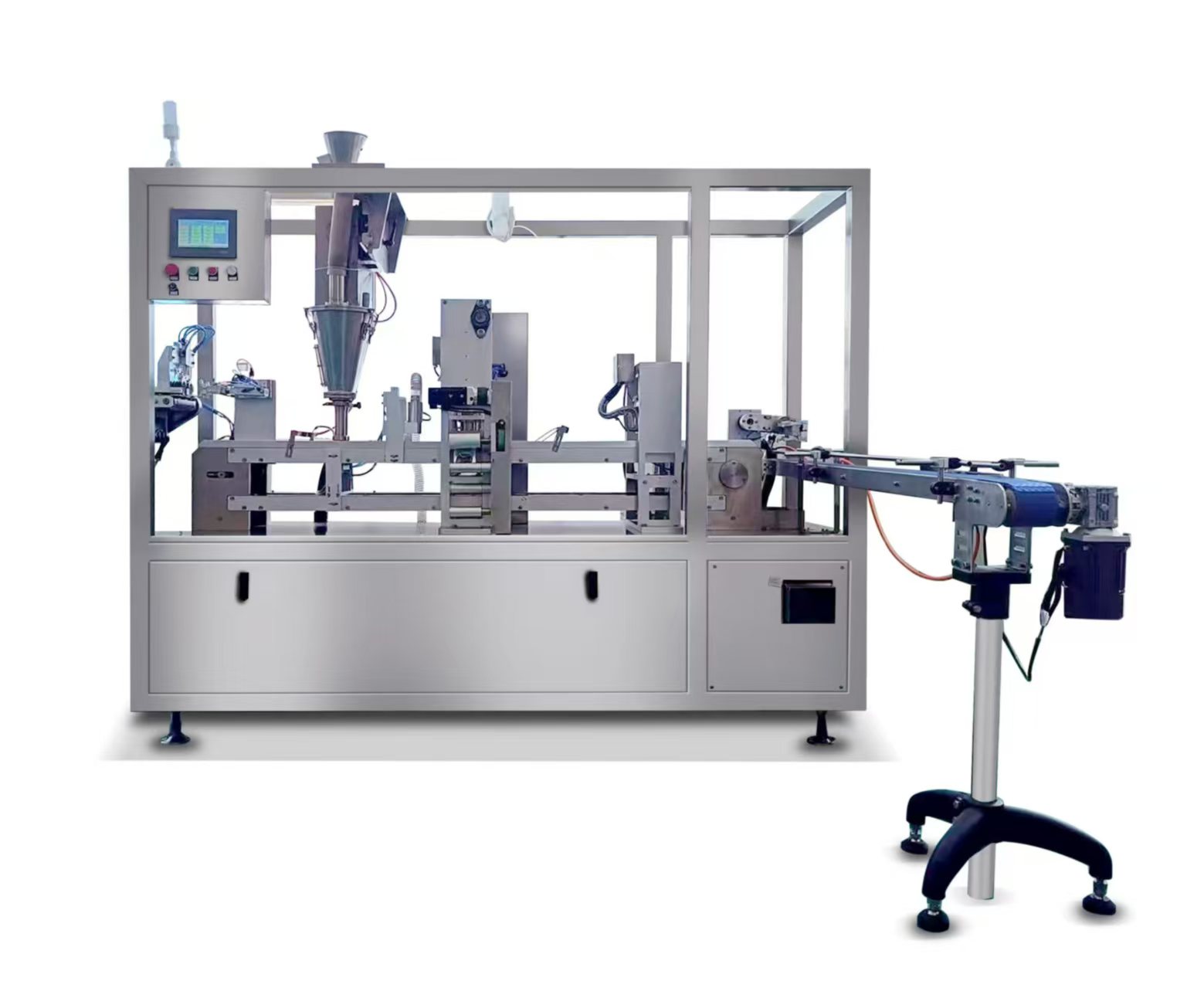

Two-cup capsule K-CUP filling and sealing machine- DCC

Product Description

Specifications

Model	DCC-1-3000	DCC-2-6000	DCC-4-7000
Lane /Rotary	1 Lane	2 Lane	4 Lane
Max Production Speed	50 cups /minute	100 cups /minute	200 Cups/Minute
Max Filling Capacity	20g
Filling Accuracy	±0.01~1.5%
Voltage	AC220V/380V 50Hz/60Hz
Power	1.5kW	6kW	8kW
Air Consumption	0.8MPa or 116Psi 0.1m³/min or 3.53CFM
Net Weight	650kg or 1430lb	1250kg or 2750I北	3000kg or 6600lb
Gross Weight	700kg or 1543Ib	1320kg or 2910lb	3100kg or 6834lb
Machine Size	1950mmx900mm× 2200mm	3300mm x1200mm×2300mm 130 ”x48 ”x91 ”	4500mm × 1600mm×2400mm 178″x63″x95 ”

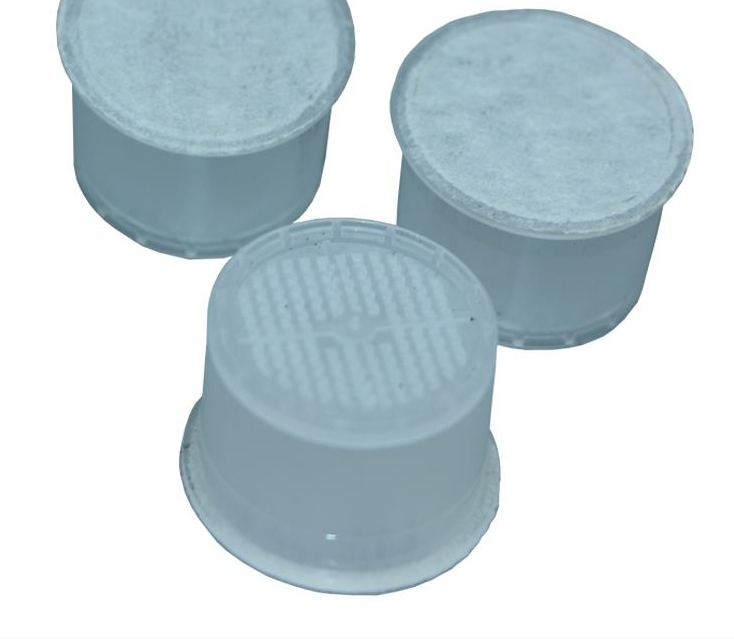

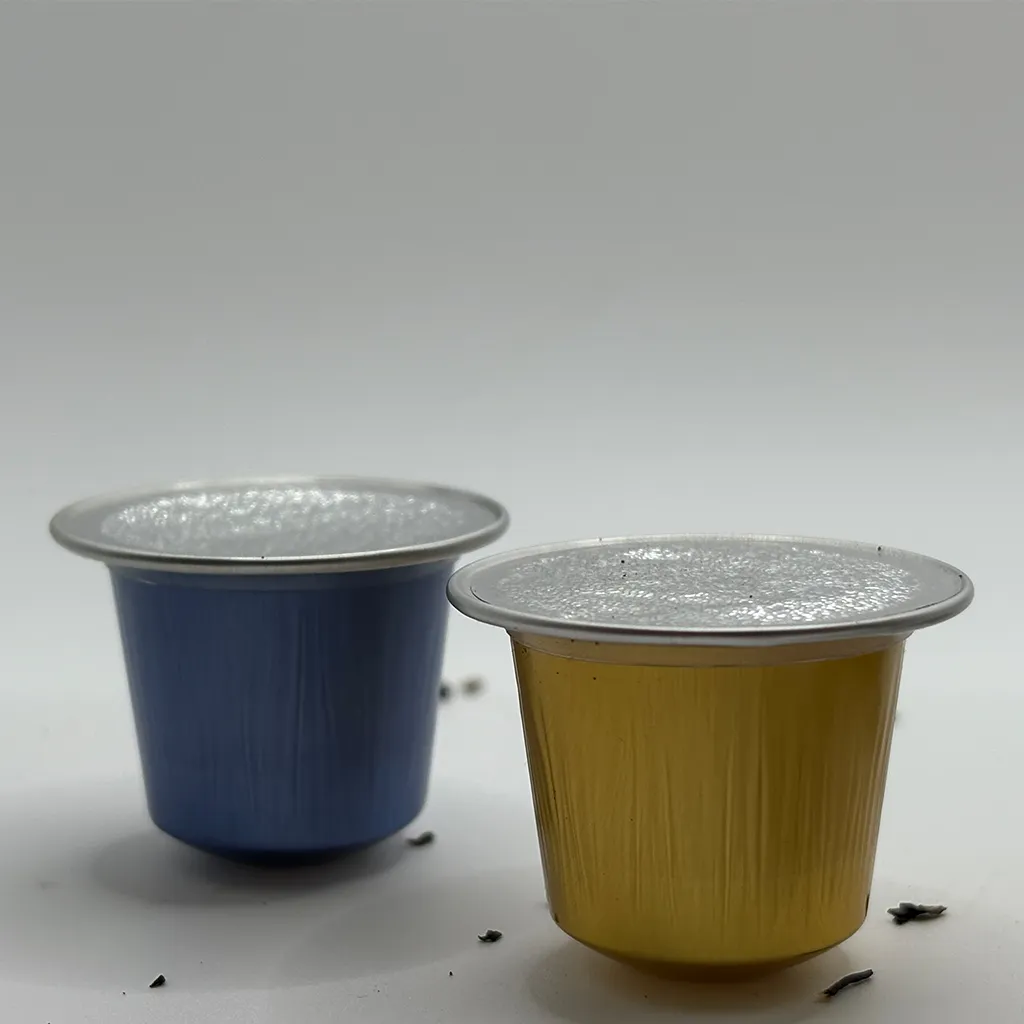

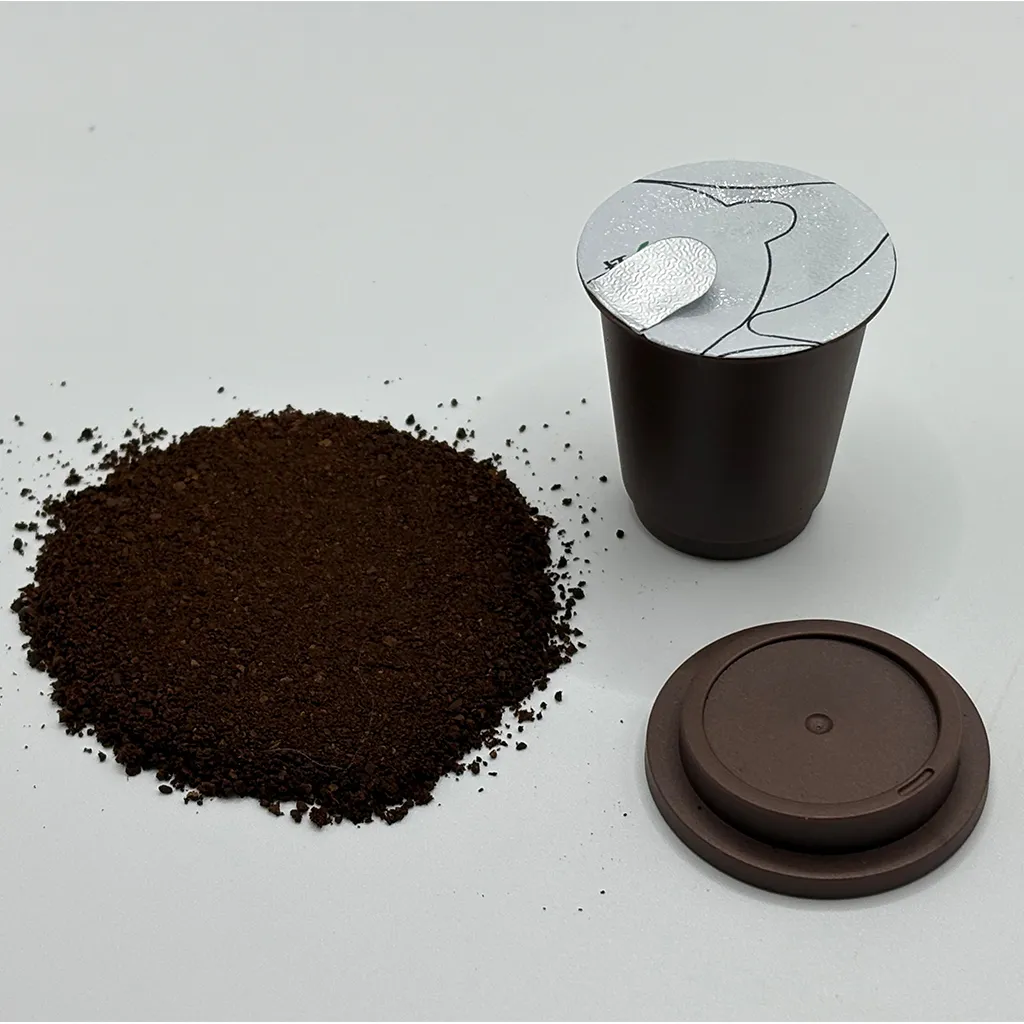

Our machine can be customized for various cup types

Product Show

Features
●Automaticaly acoomplishall production processsmall vdume,operate easly ●PLC control system and real-time monitoring.
●Automatically load cup.
●Automatically vacuum suck andconvey materials.
● Servo control auger filling.
●Filling liquid system(various flavor).
●Automatically suck capsule rim remaining powder. ●UV germicidal lamp(option).
●Automatically suckand place lid.
●Automatically heat seal,Line seal and flat seal. ●Automatically output finished products.
